Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Current Rating | 25A A |
| Current, Leakage | 7 mA(RMS) (Max.) |
| Current, Load | 25 A rms |
| Current, Surge | 250 Apk (Max.) |
| Depth | 0.079" (2mm) |
| Dielectric Strength | 2500 V (RMS) |
| Dimensions | 45.7 x 23 x 58.4 mm |
| Height | 2.299" (58.4mm) |
| Length | 1.799" (45.7mm) |
| Minimum Load | 80 mA rms |
| Power Rating | 0.6 (Min.) |
| Relay Type | General Purpose Relay |
| Resistance, Thermal, Junction to Case | 1.02 °C⁄W |
| Series | |
| Standards | CE, RoHS Compliant |
| Switch Type | AC Switching |
| Temperature Operating Range | -30 to 80 °C |
| Temperature, Ambient | -30 to 80 °C |
| Terminal Type | Screw |
| Thickness | 0.87 in. |
| Voltage Rating | 200 to 240 VAC |
| Voltage, Load | 200 to 240 V rms |
Overview

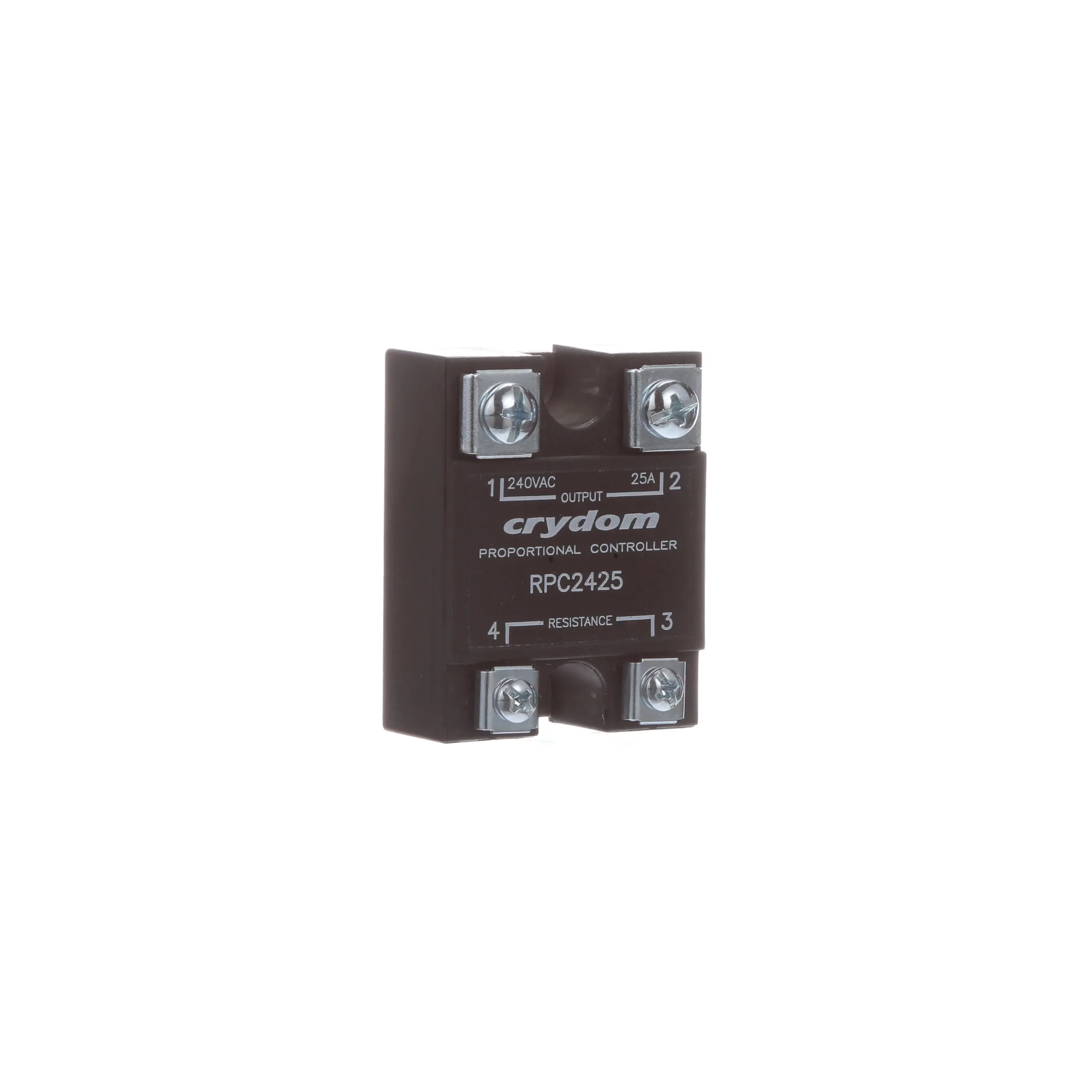

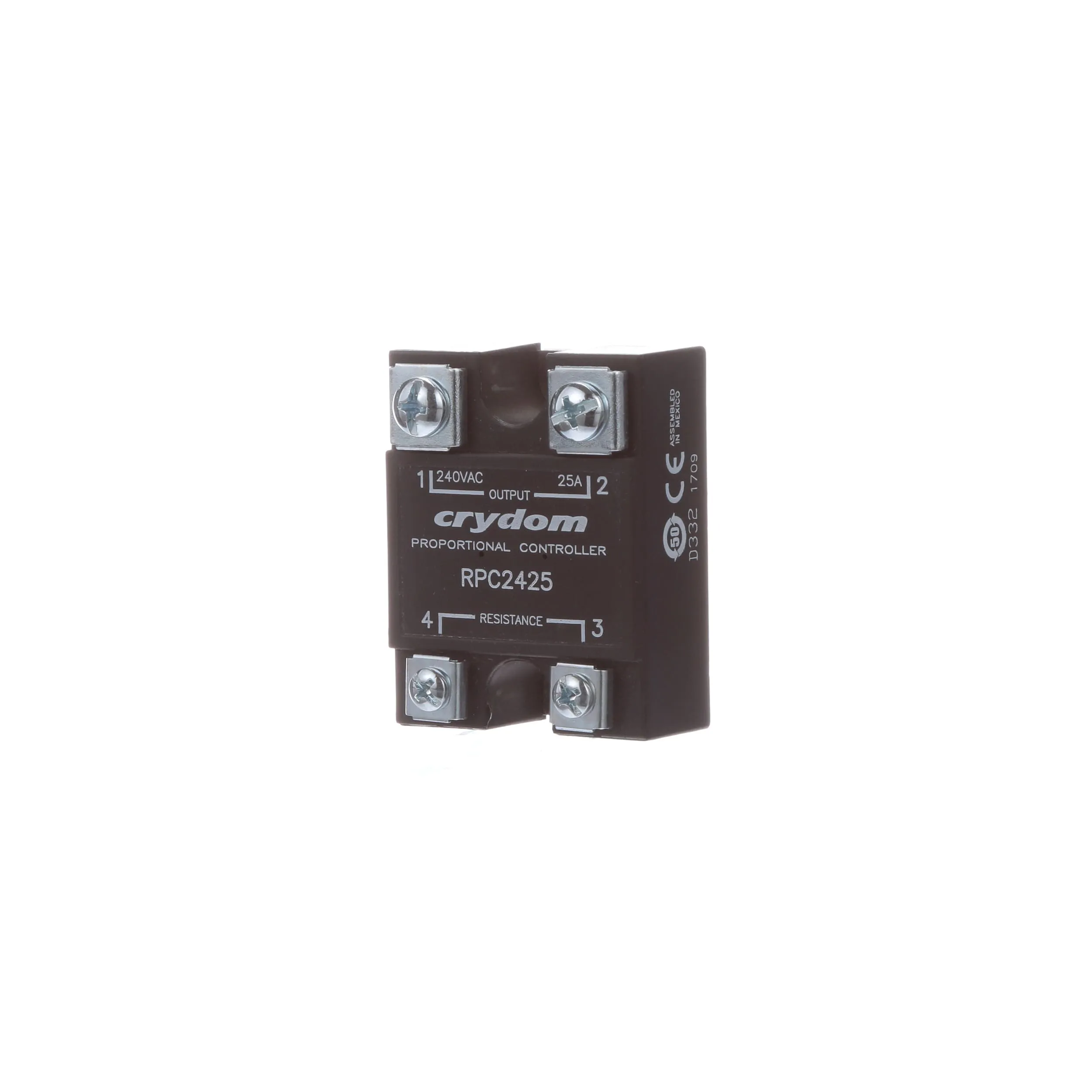

Solid State Proportional Controller, 2500 V (RMS) Dielectric Strength
15-40 Amp; 120, 240, 480 VAC; AC Output
The RPC series proportional controllers provide a cost effective method of controlling power in many applications such as heaters or incandescent lamps. A customer provided potentiometer is all that is required for control. Operating Temperature Range: –30°C to 80°C. Isolation Voltage (V RMS ): 2500 (load to base plate only). Warning: Control to load is not isolated, exercise care in handling this product to avoid the risk of electric shock.
