Description

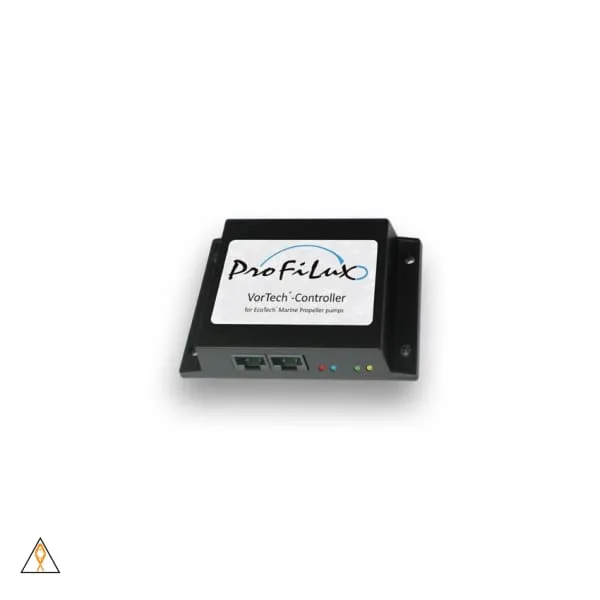

With the GHL VorTech-Controller, ProfiLux 3 and 4 Controllers are able to independently operate up to 11 radio-controlled VorTech® current pumps from EcoTech Marine®. The VorTech Controller is connected via PAB (ProfiLux Aquatic Bus, ProfiLux 3 only) and requires no additional power supply.

Features

• 11 independent channels for 11 VorTech pumps.
• In addition to the VorTech modes, all built-in wave functions of the ProfiLux can also be used.
• Possible future firmware-updates of pumps and VorTech-Controller for further enhancements .
• The VorTech controller is automatically detected.
• Pump assignments can be changed.
• The operational mode can be varied through the day. Define up to 12 time intervals where different settings are active.
• 2 PAB-ports for a flexible bus wiring.
• 4 Indicator LEDs for PAB- and Pump-States.
• No extra power supply needed (Bus-powered).

Specifications

• Supports all VorTech operating modes
• Constant Speed
• Lagoon Random Mode
• Reef-Crest Random Mode
• Short Pulse Mode
• Long Pulse Mode
• Feed Modes
• Battery Backup-Modes

Moreover, the following modes are supported for EcoSmart pumps

• Tidal Swell Mode (EcoSMART TSM)
• Nutrient Transport Mode (EcoSMART NTM)

* PAB cable NOT included
