Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | PT 3-PB-ST |
| Approvals | UL Listed, EAC, EAC, DNV GL |
| Configuration | Two-Section, Divisible |
| Current, Surge | 20 kA |
| Dimensions | 45mm L x 17.7mm W x 52mm H |
| For Use With | Data/Comm, Industrial Equipment |
| IP Rating | IP20 |
| Mounting Type | Socket Mount |
| Number of Conductors | 8 |
| Operating Temperature | -40 to 85 °C |

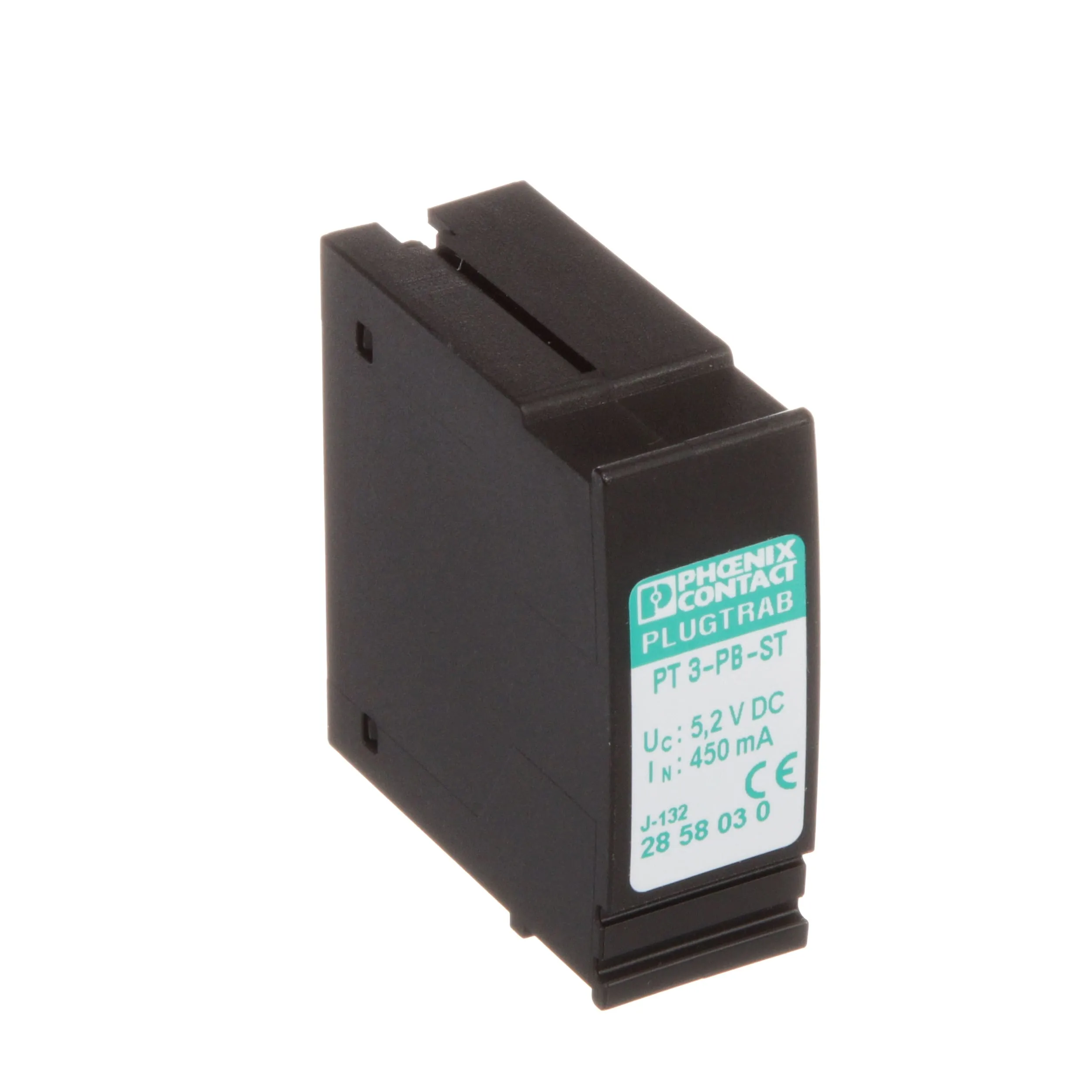

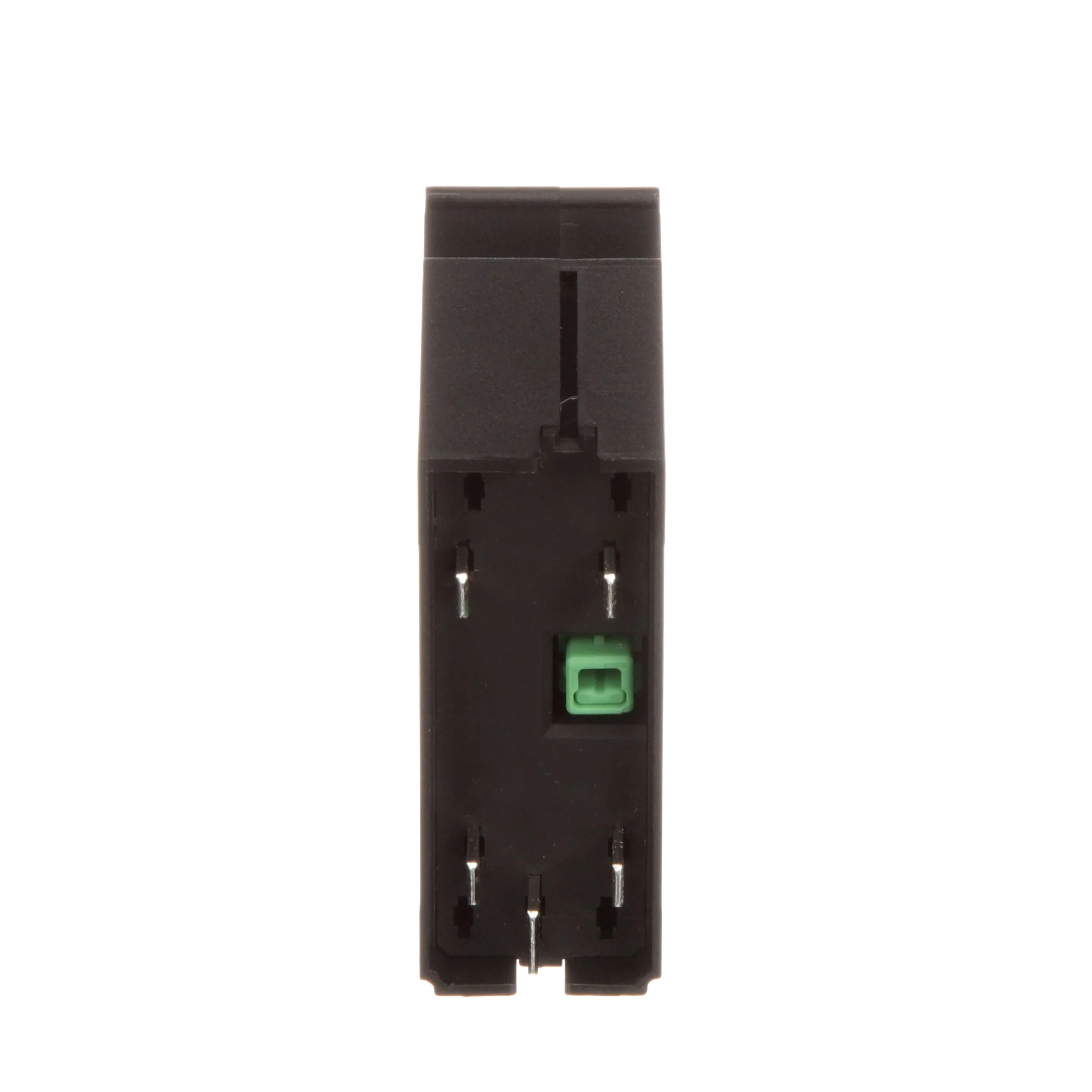

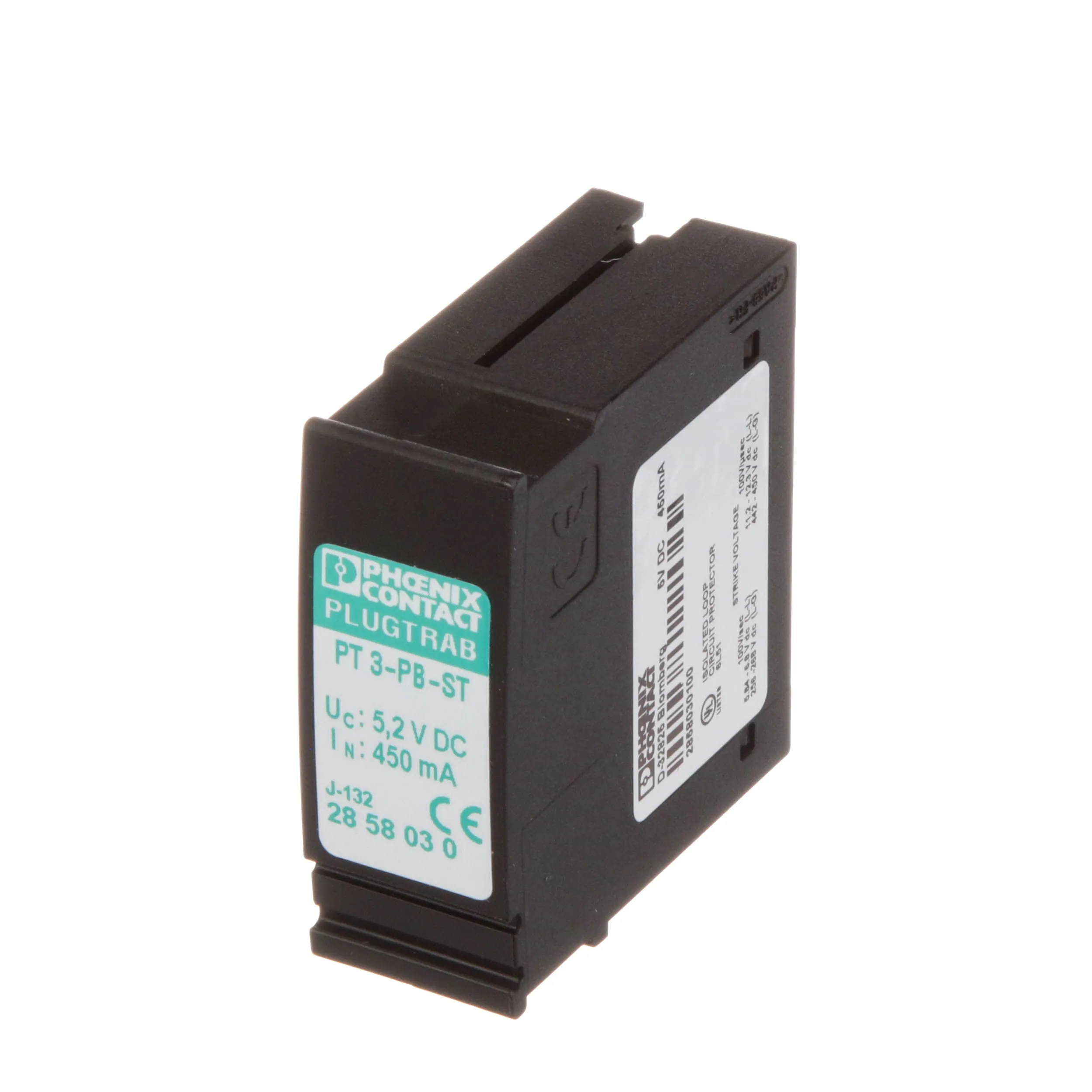

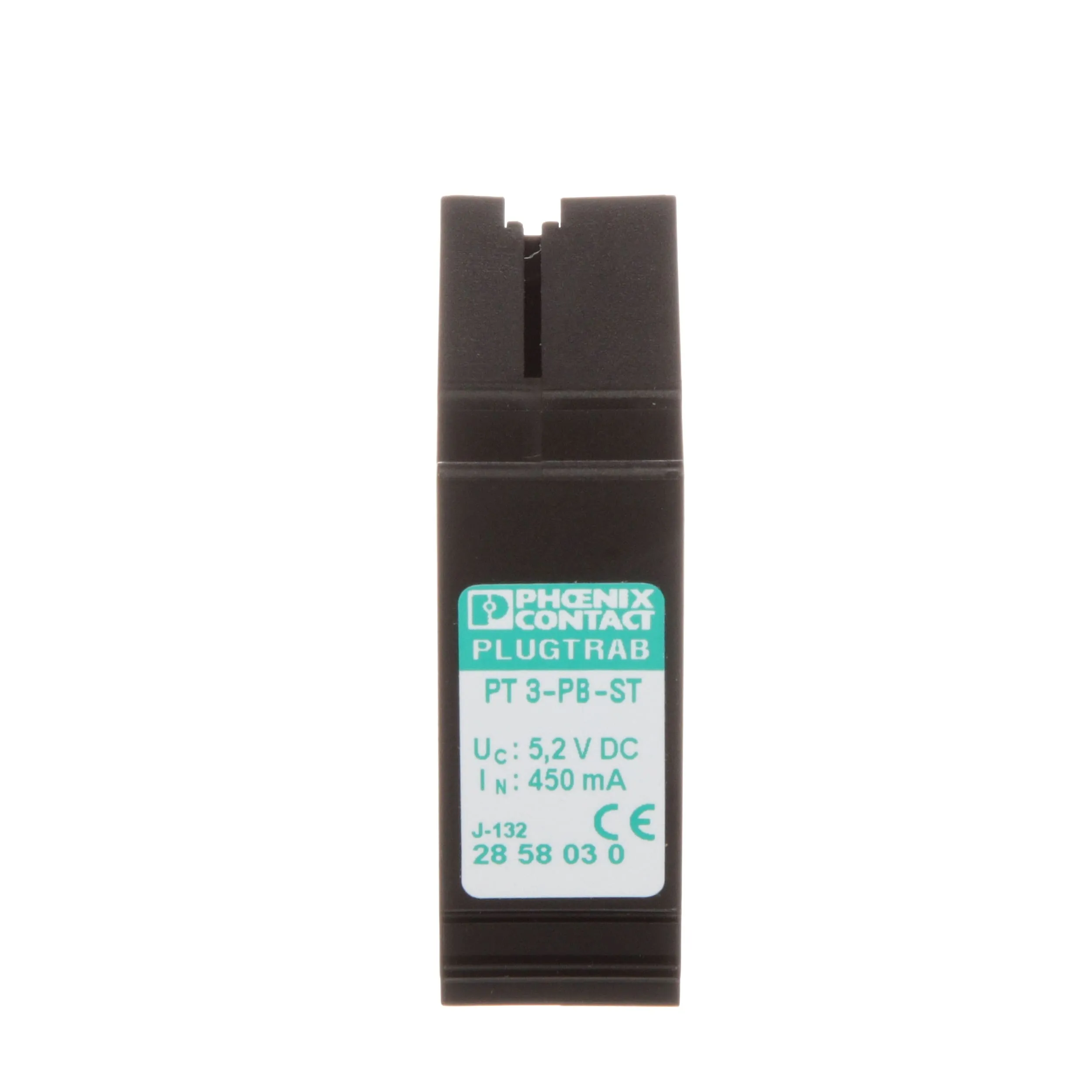

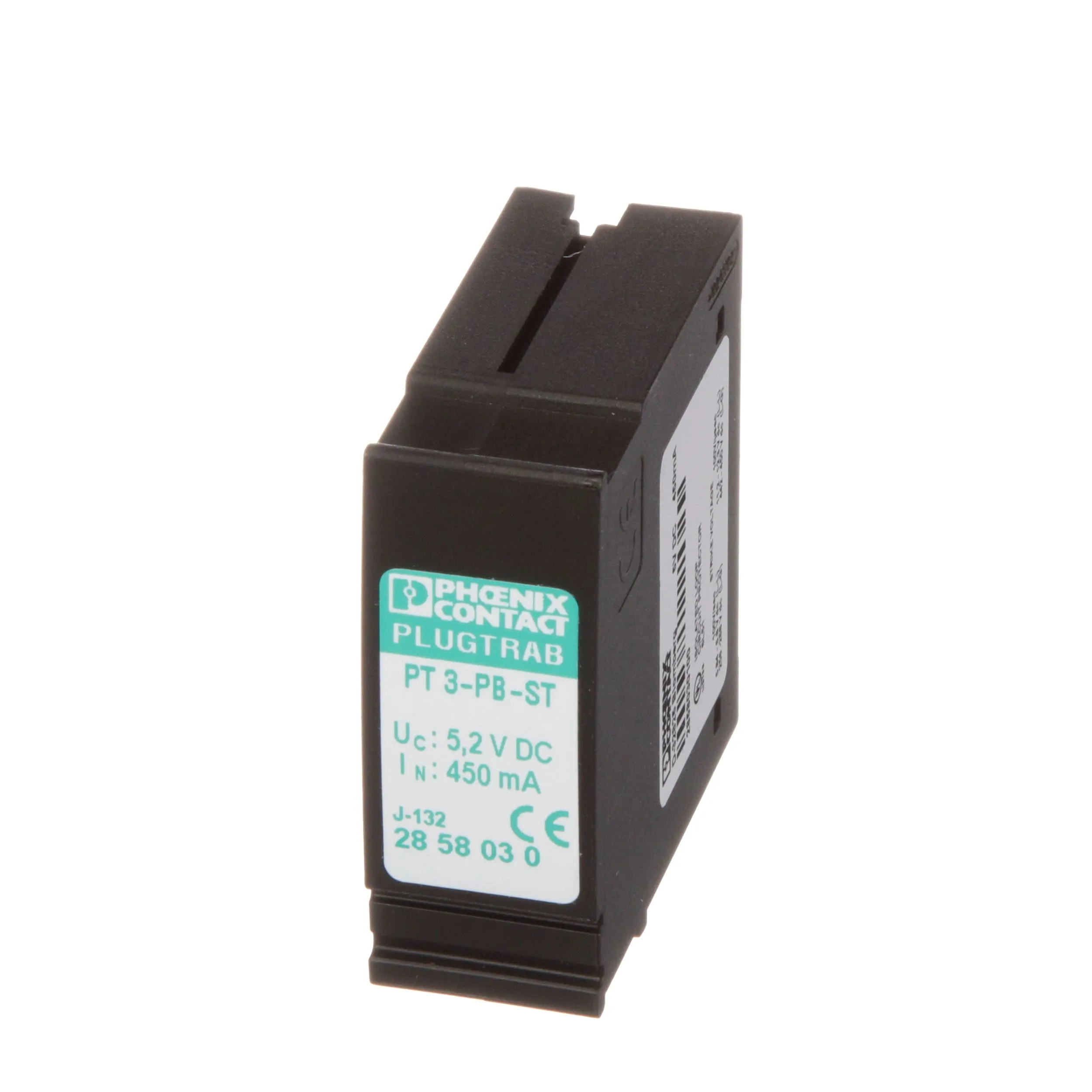

| Product Header | Surge protection plug |
| Response Time | 500 nS (Core to Earth, Core to Core) |
| Series | |
| Standards | UL Listed |
| Supply Voltage | 5 VDC |
| Termination | Screw |
| Type | Network |
| UPC Code | 4017918878030 |
| Voltage Rating | 5 VDC |
| Voltage, Operating | 5.25 VDC |
| Wire Size | 24-12 AWG |
Overview
These modules are designed especially for protecting industrial bus systems such as Interbus, Profibus, Data-Highway and Modbus.
The PT 3-PB Series of products provides normal mode voltage coarse and fine protection for two floating signal wires in IT and common mode voltage coarse protection to ground.
