| Product Attribute | Attribute Value |
|---|---|

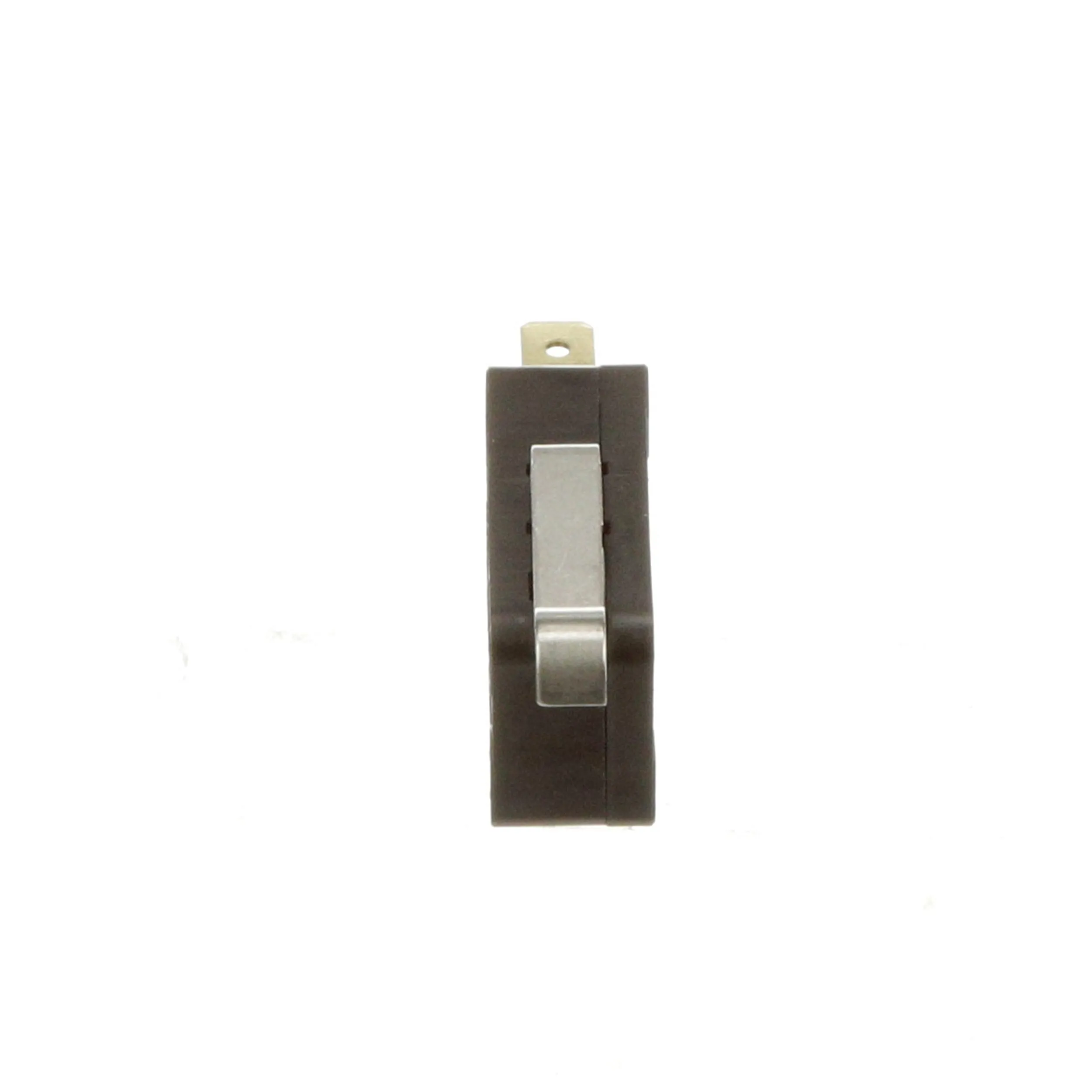

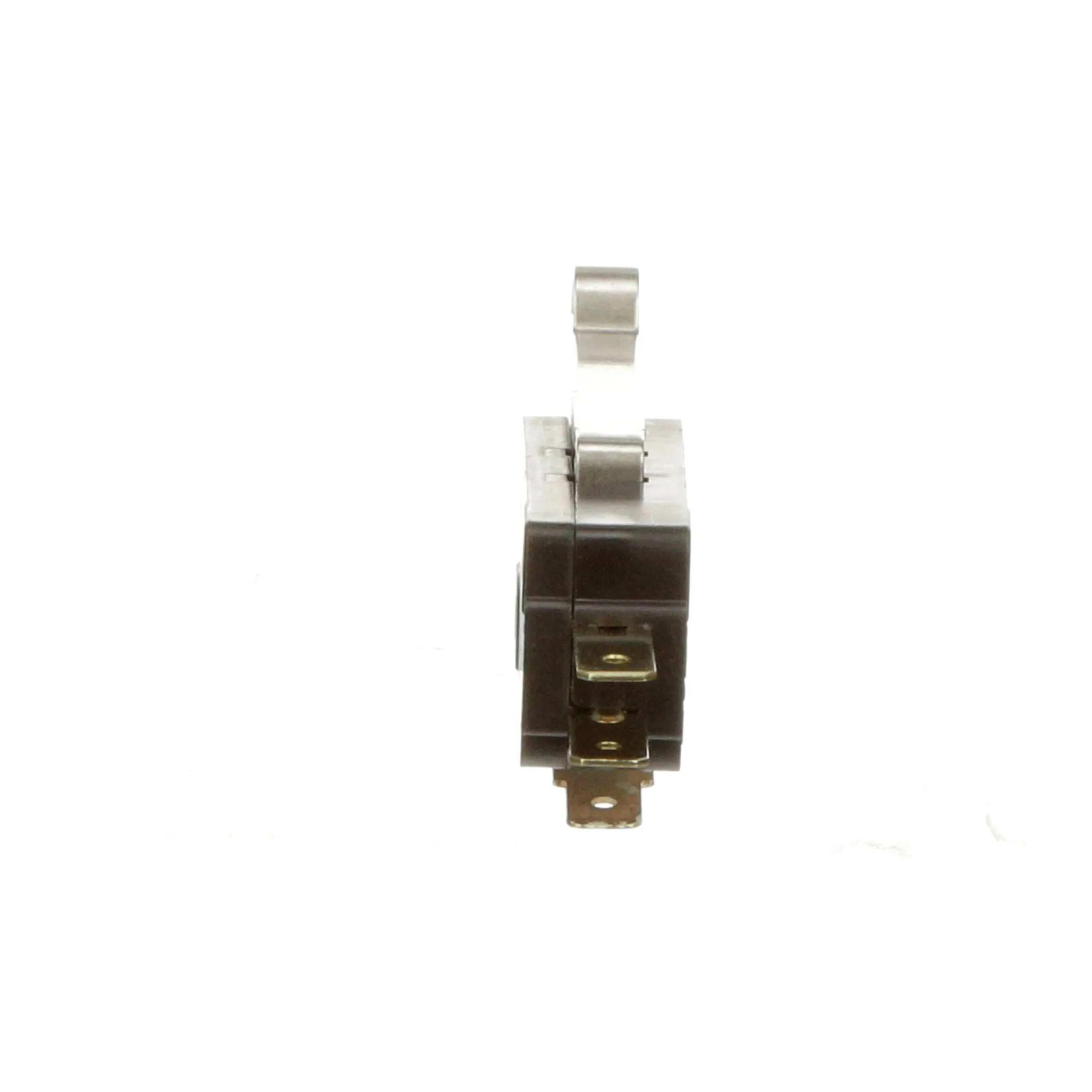

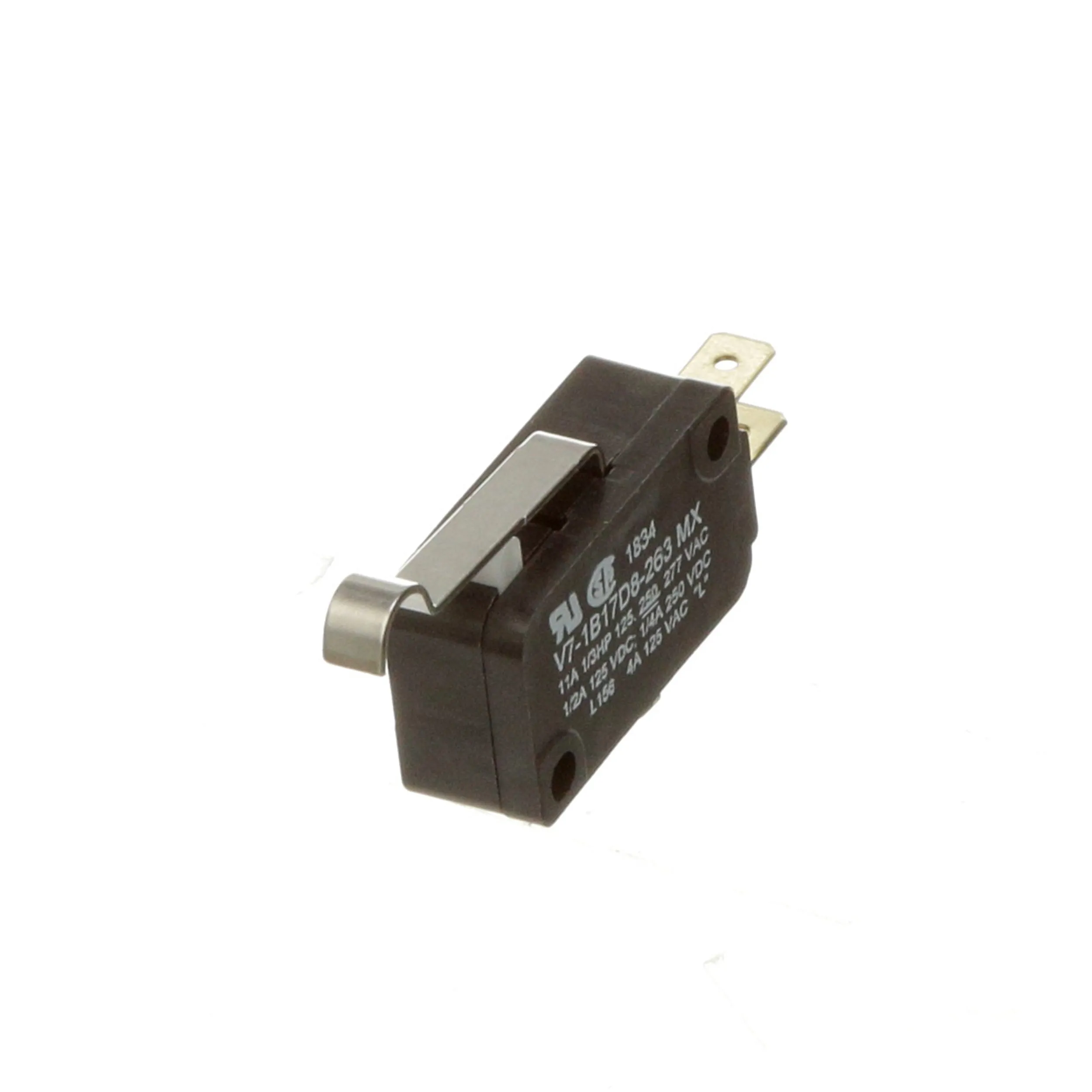

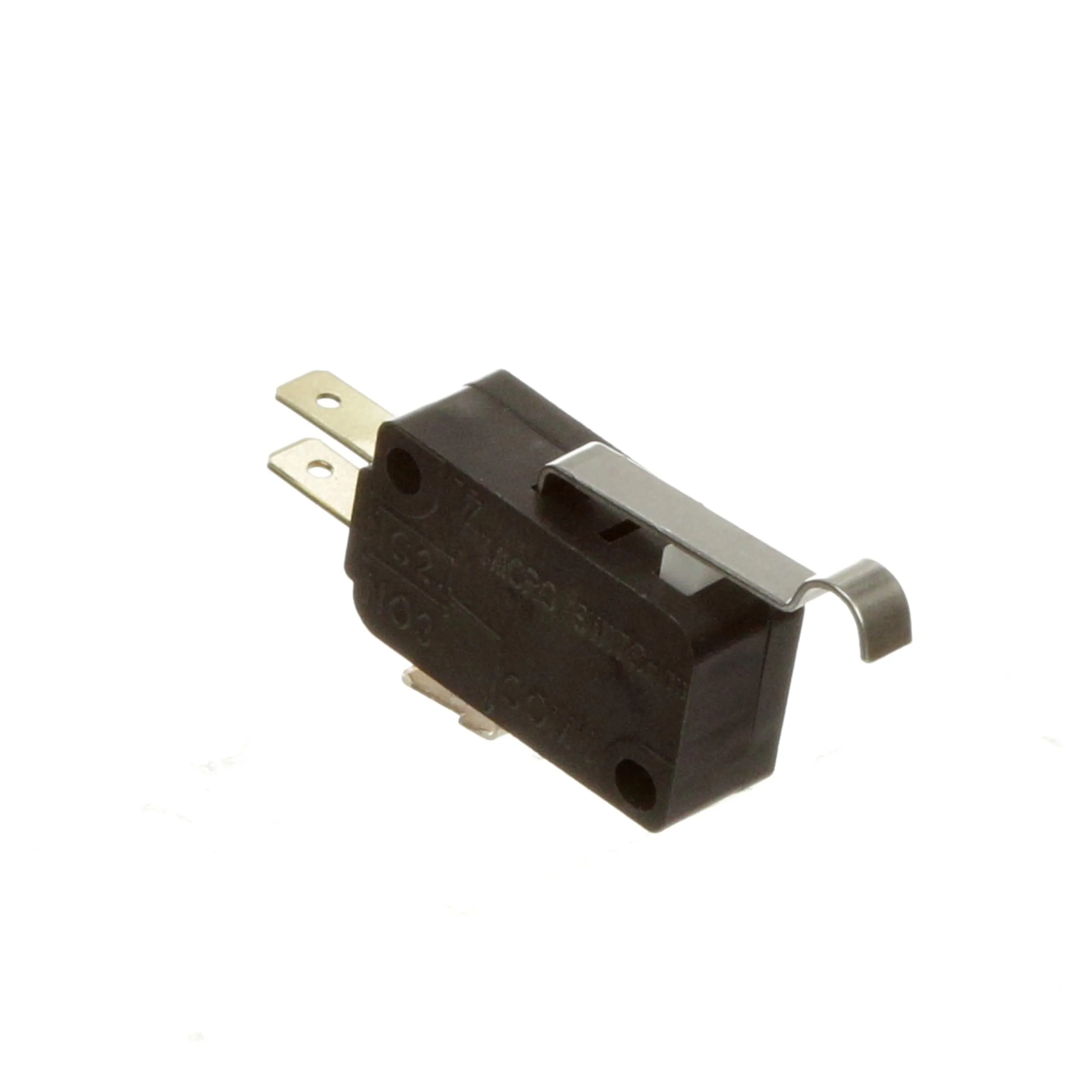

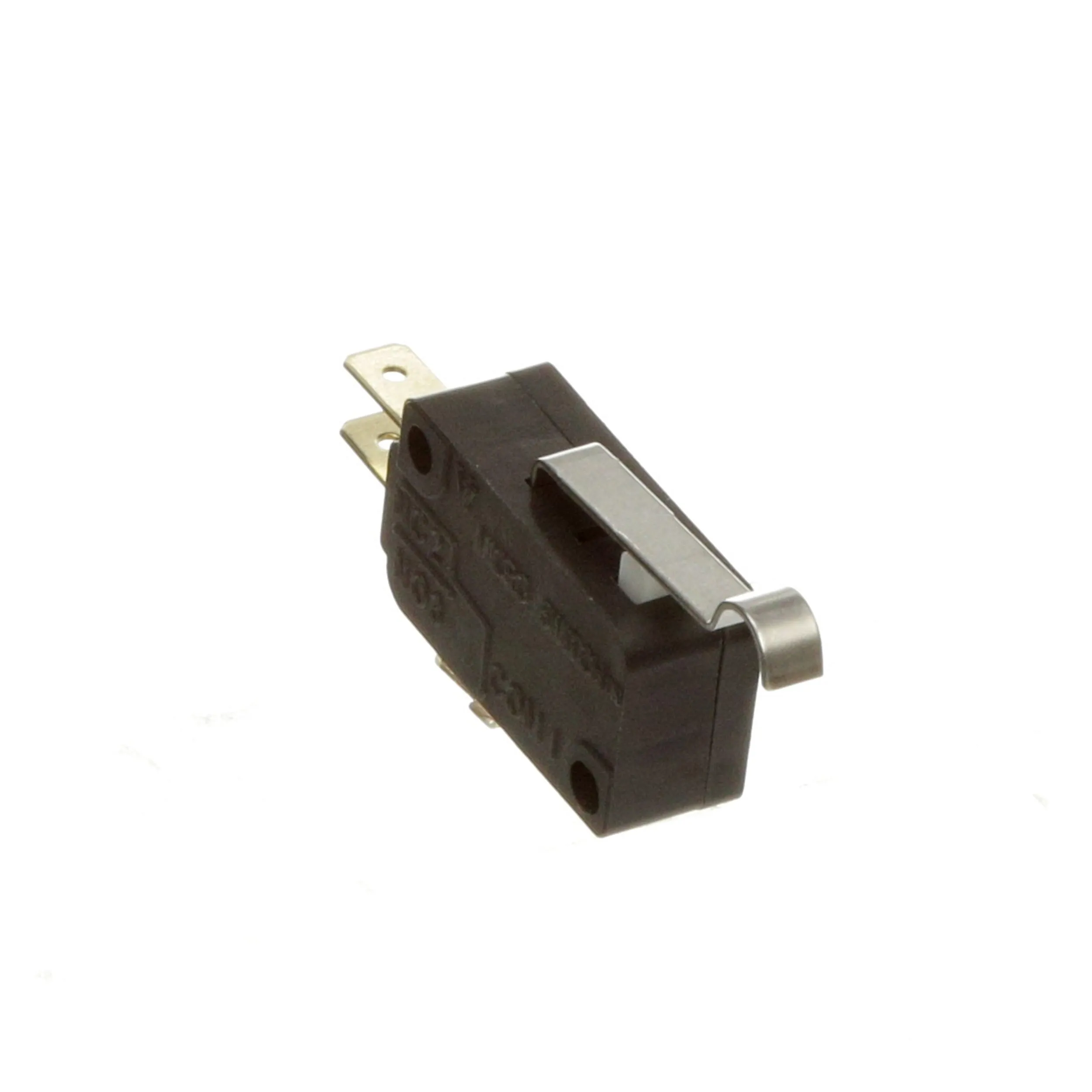

| Actuator Type | Simulated Roller Lever |
| Body Style | Miniature |
| Contact Form | SPDT |
| Contact Material | Gold Alloy⁄Silver Alloy⁄Silver |
| Current Rating | 11 A |
| Material, Casing | Thermoplastic |
| Mounting Hole Size | 0.114 " |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 3.15 Oz. |
| Operating Temperature | -40 to 85 °C |
| Series | |
| Special Features | High Temperature |
| Standards | UL Recognized, CSA Certified, VDE Approved |
| Termination | QC Tabs |
| Type | Basic |
| Voltage Rating | 277 VAC |
Overview
Honeywell’s MICRO SWITCH V7 Series - Premium Miniature Basic Switches:
Honeywell’s MICRO SWITCH™ V7 miniature switches are designed for long term-reliability in a rugged switch packaged with a thermoplastic housing. These switches may be installed in a wide range of applications from simple or precision on/off limits, presence/absence sensing, or embedded in pressure or temperature assemblies. The V7 switch is available as a pin plunger style or with optional integral or auxiliary levers to actuate the switch and offer versatility in the application. The switch requires as little as 0,15 Newtons [approximately 1⁄2 ounce] to operate for extremely sensitive applications or an operating force of almost 4 Newtons [14 ounces] where higher forces are required. The V7 switch can reliably control logic level electrical loads from less than 0.1 A to power duty switching up to 25 A. Agency certifications for the MICRO SWITCH™ V7 switches are provided through CSA, ENEC, and UL for global use around the world.
