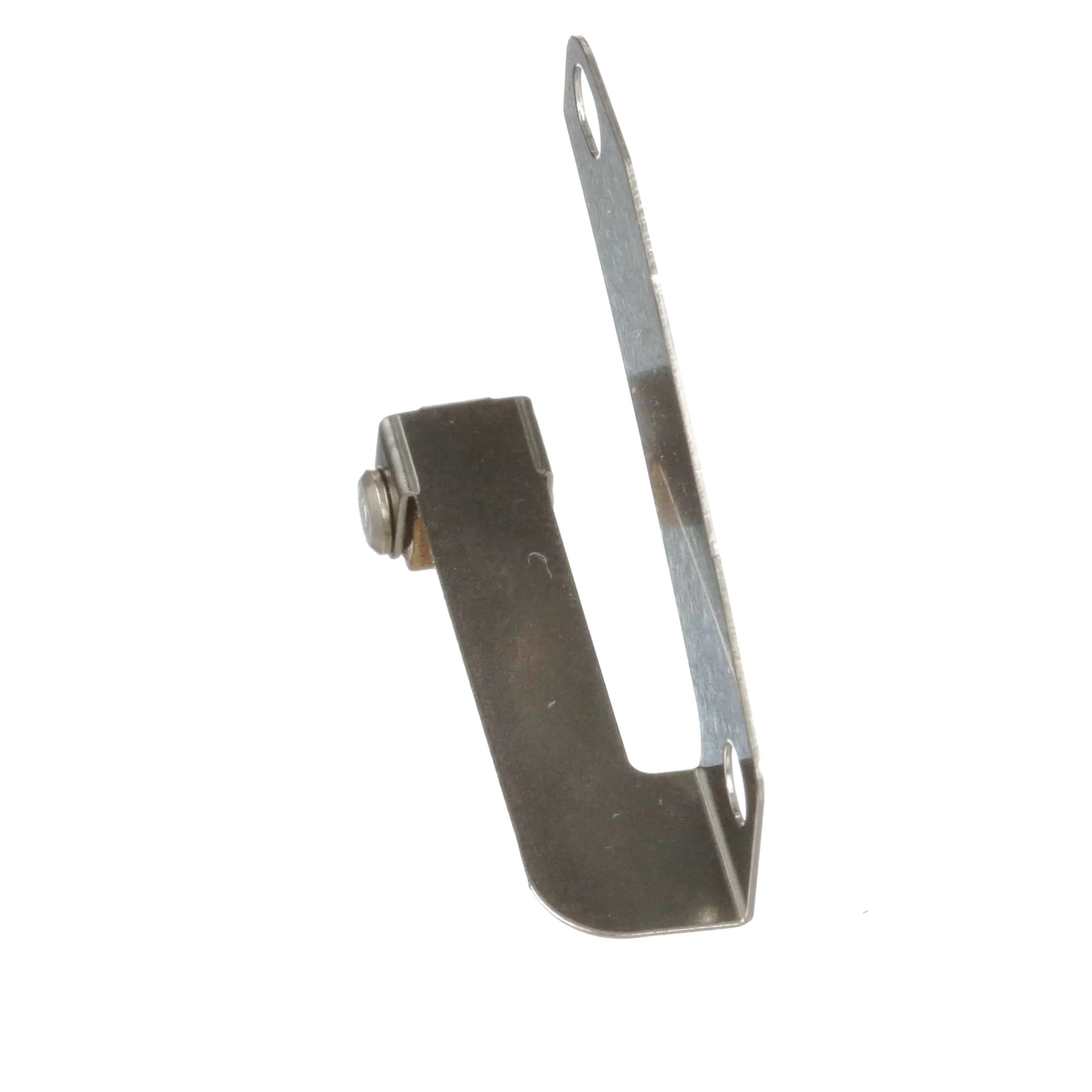

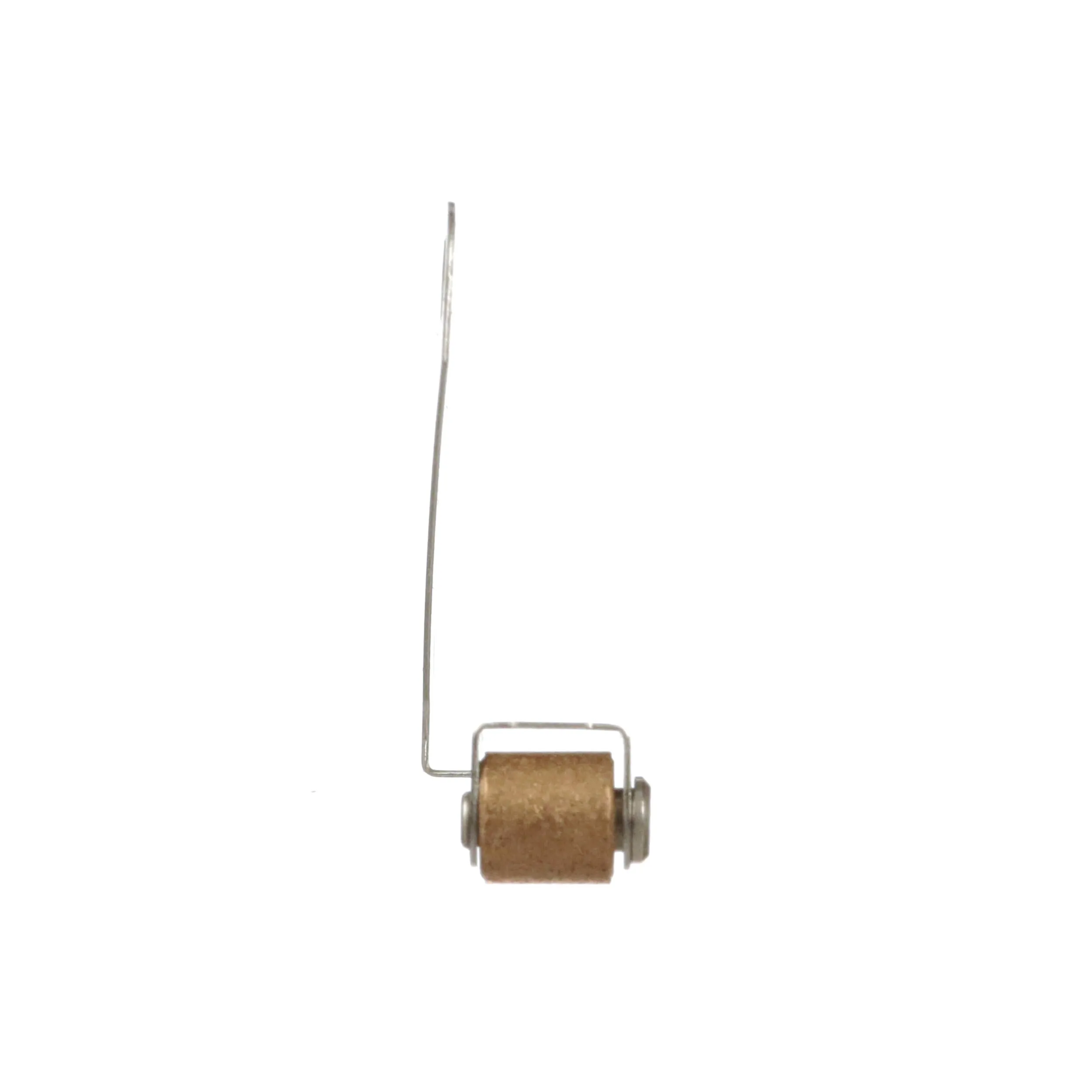

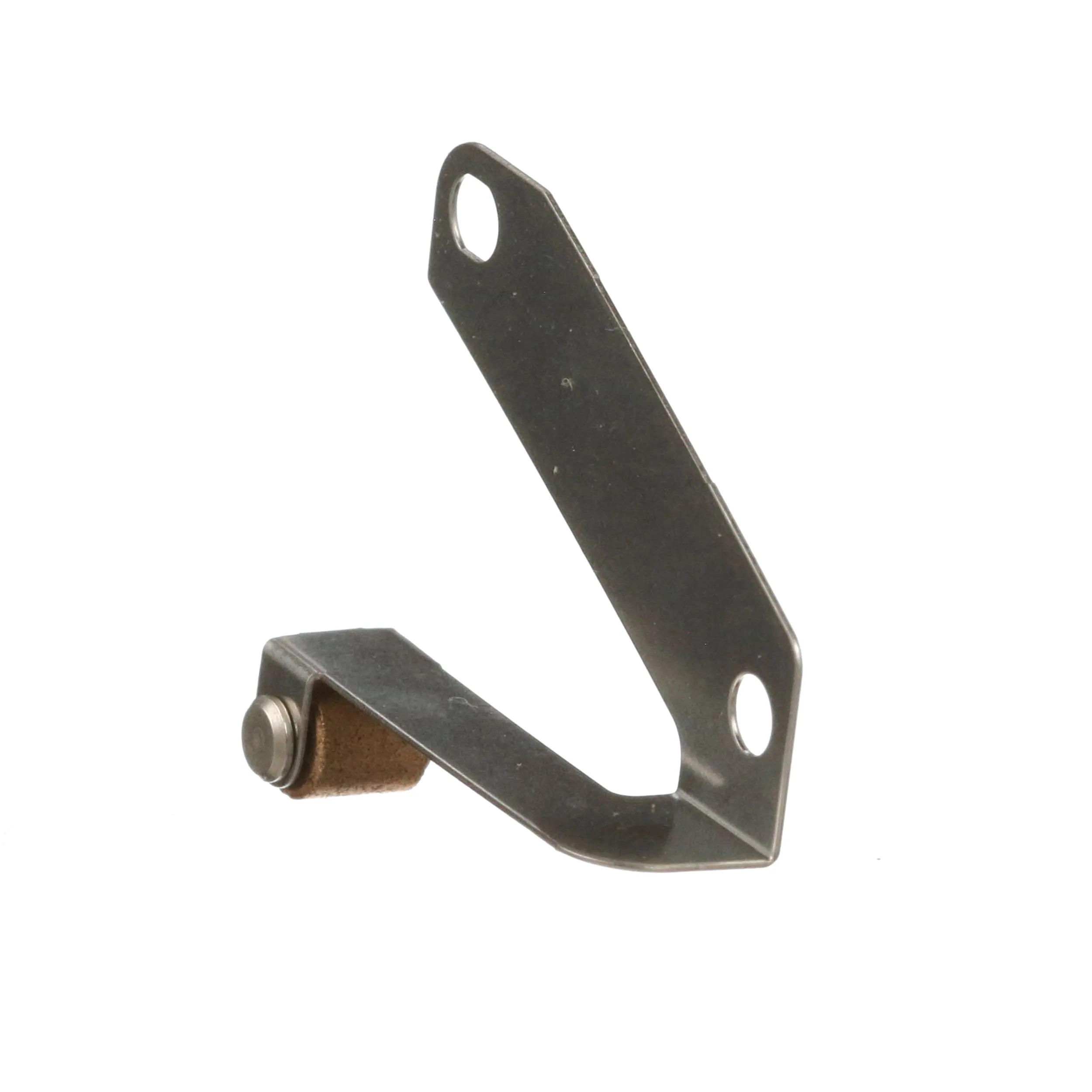

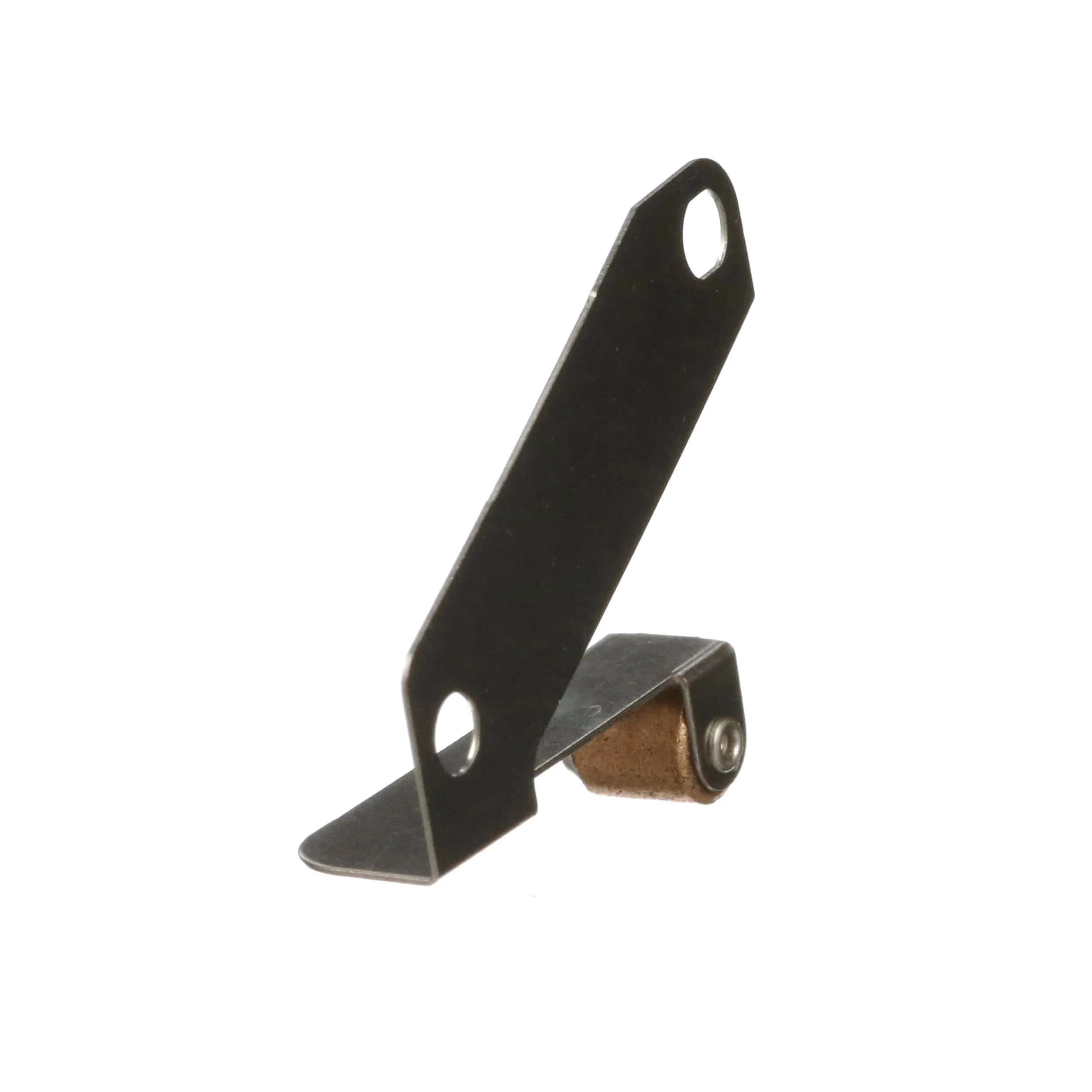

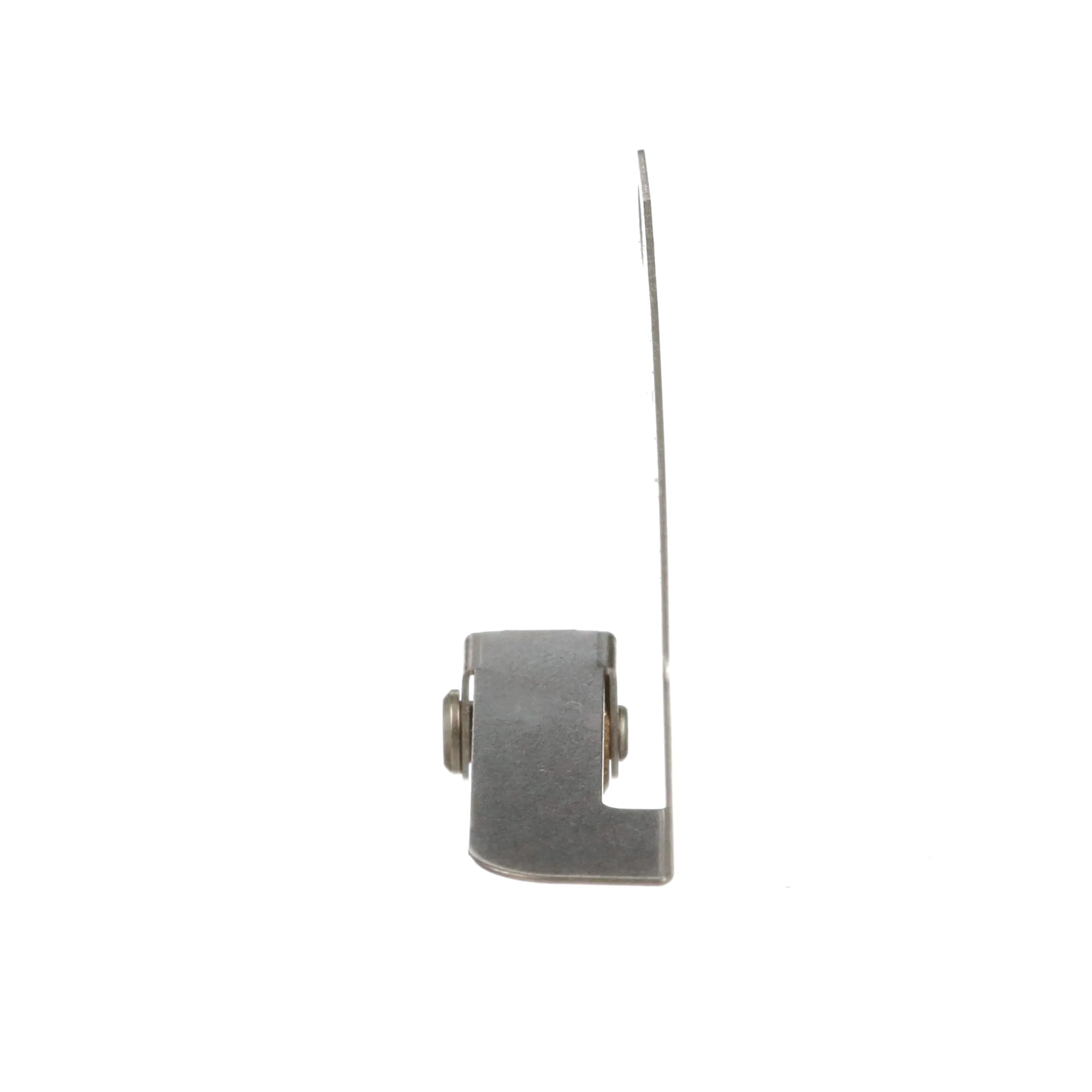

Name: Honeywell JV-5
SKU: 1033864

Product Details ＋

Product Attribute	Attribute Value
Actuator Type	Roller Lever
Series

Overview

Honeywell’s MICRO SWITCH V7 Series - Premium Miniature Basic Switches:

Honeywell’s MICRO SWITCH™ V7 miniature switches are designed for long term-reliability in a rugged switch packaged with a thermoplastic housing. These switches may be installed in a wide range of applications from simple or precision on/off limits, presence/absence sensing, or embedded in pressure or temperature assemblies. The V7 switch is available as a pin plunger style or with optional integral or auxiliary levers to actuate the switch and offer versatility in the application. The switch requires as little as 0,15 Newtons [approximately 1⁄2 ounce] to operate for extremely sensitive applications or an operating force of almost 4 Newtons [14 ounces] where higher forces are required. The V7 switch can reliably control logic level electrical loads from less than 0.1 A to power duty switching up to 25 A. Agency certifications for the MICRO SWITCH™ V7 switches are provided through CSA, ENEC, and UL for global use around the world.

Features:

Certified with CSA, ENEC, and UL for global acceptability

Reliable snap-spring mechanism with more than 60 years of proven service

Available with pin plungers, integral levers (fitted two positions), or auxiliary levers to meet equipment requirements

Electrical ratings from 0.1 A up to 25 A for design flexibility in one package size

Best suited for higher cost-of-failure applications

Designed for 100K operations at a full load or 10M for mechanical life

World-wide package size acceptance

Current rating ranges from 0.1 A to 25 A

Applications:

Appliances

Vending machines

Timing devices

Office equipment
