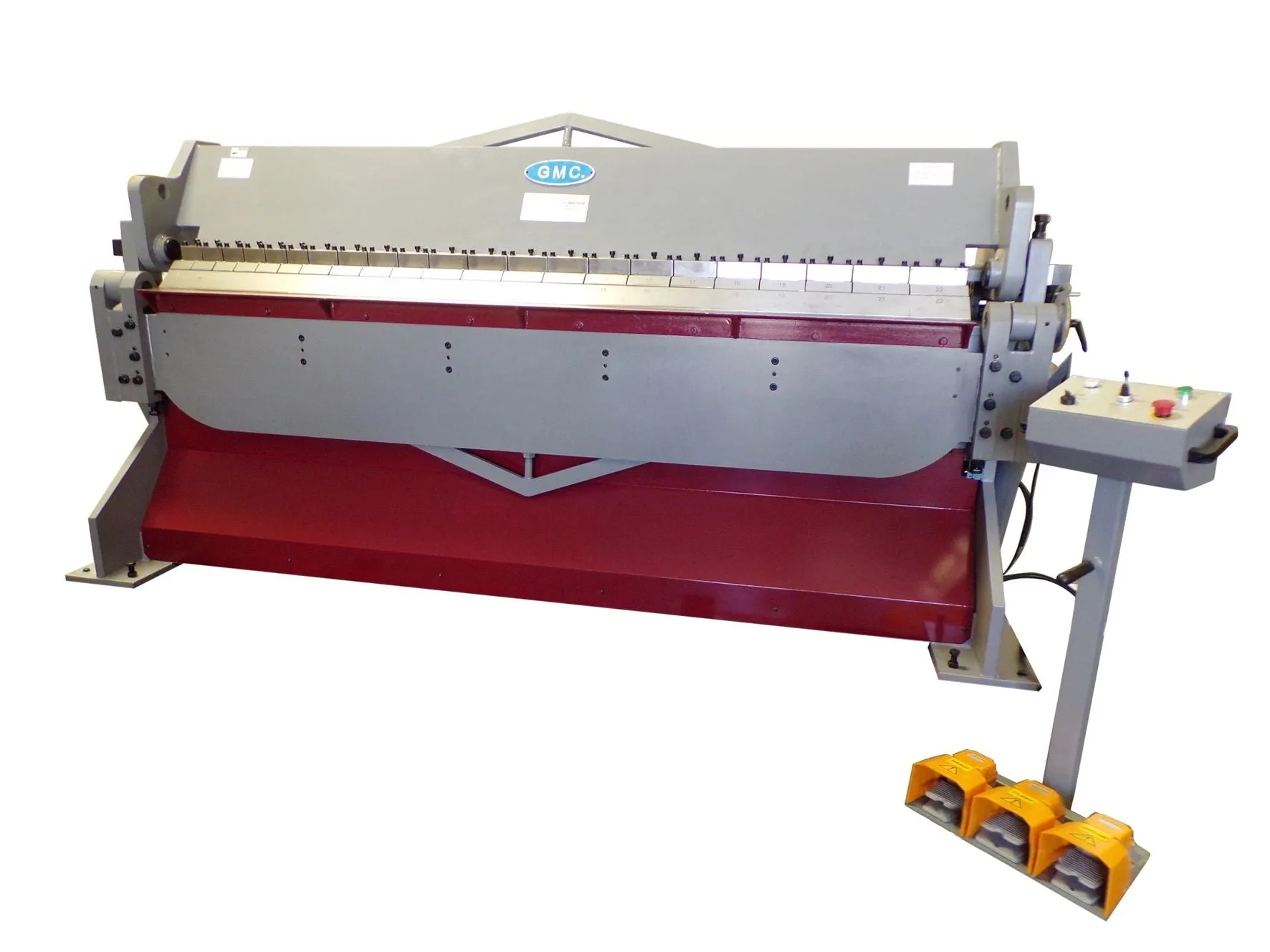

New GMC 8' X 10 gauge box pan-brake-model-GMC-HBB--0810

Standard Features:

• 100% made in Taiwan

• ISO 9001 certified

• Hydraulic adjustment for opening

• Hydraulic power clamping for workpiece

• 1” manual beam adjustment ( front and back )

• Heavy welded all steel construction for maximum rigidity

• Hydraulic logic system centrally located and quiet

• A wide guidebody ensures strong, stable, smooth & accurate movement

• Total 2”/6”/12”/ 18”/ 24” pieces fingers assortment

• Central control panels on each side for convenient operation

• Jog and auto operation modes

• Overload protection and disconnect switch

• One year warranty for part

• Standard Equipment Assorted fingers Angle set up dial Hydraulic clamping system (2) safety protection side guards Foot pedal control for hydraulic clampin Optional Equipment: One-piece straight clamping bar finger instead of assorted fingers Extra one-piece straight clamping bar finger NC control Angle set up with Miniki NC controlle SPECIFICATIONS Model HBB-0412 HBB-0410 HBB0612 HBB-0610 HBB-0812 HBB-0810 HBB-1014 HBB-1010 Max Bending Length 4' 6' 8'2" 10' Capacity Mild Steel 12Ga 10Ga 12Ga 10Ga 12Ga 10Ga 14Ga 10Ga Capacity Stainless Steel 16Ga 12Ga 16Ga 12Ga 16Ga 14Ga 18Ga 12Ga Min Reverse Bend 13/16" Bend Angle 135 Max Box Depth 6" Large Beam Opening 8" Oil Tank Gal. 10 15 20 25 Main Motor HP 2 5 2 5 3 5 3 5 Mach Weight LBS 2,350 4,150 4,350 5,350 5,650 6,650 6,150 8,150 Overall Dimensions Inch 83x46x62 88x51x67 106x41x67 110x43x69 132x41x67 141x43x69 153x46x66 157x46x69
