Features:

Maximum Total Output Power (= Sum of Total Module Output Power)

• 1200 W when operating from 200 - 240 VAC input
• 600 W when operating from 100 - 120 VAC input

AC Input

• Nominal Input Ratings: 100 VAC - 240 VAC; 50/60/400 Hz
• Input Range: 86 VAC - 264 VAC
• Maximum Input Power: 2000 VA, 2000 W

Protection Response Characteristics

• INH input: 5 µs from receipt of inhibit to start of shutdown
• Fault on coupled outputs: < 10 µs from receipt of fault to start of shutdown

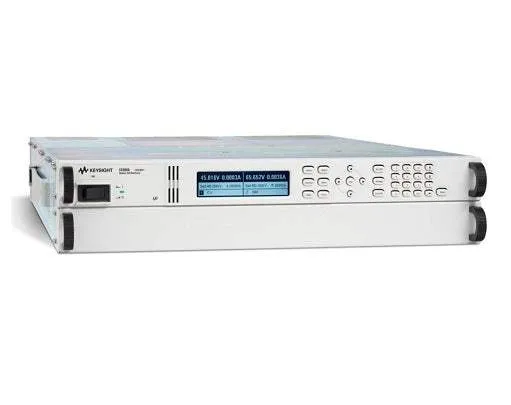

The Keysight 1200W, E4360A Modular Solar Array Simulator is a 2U high, 2-slot mainframe that accepts up to 2 E4360 series modules. Modules are ordered separately. It offers LAN, USB, and GPIB interfaces standard.
