Product Details
＋
Product Overview

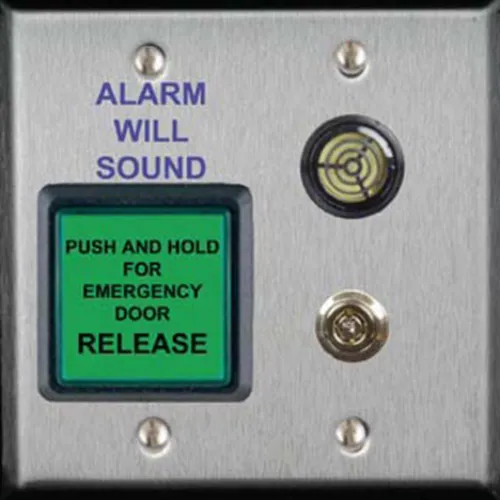

The DE-1 provides an effective means of securing an exit door while still providing egress during an emergency. Alarm will sound with unauthorized door entry. Key switch reset is required to re-lock the door unless field wired for auto re-lock.
Features
Standard Features
- Mounted on double gang stainless steel wall plate
- 2 second nuisance delay
- Key switch reset and re-lock
- Countdown buzzer and flashing lamp during timing mode
- 2" square green pushbutton; illuminated with hi-brightness LED
- Plate screened: “ALARM WILL SOUND”
- Button labeled: “PUSH AND HOLD FOR EMERGENCY DOOR RELEASE”
Specifications
Dimensions:
- Enclosure: 1-1/2"H x 3"W x 3"L
Electrical:
- One N/O and one N/C contact
- Contacts rated 10A at 35 VDC or 120 VAC
General Information
Name: Alarm Controls DE-1 Push Button, ASSA ABLOY, Alarm Controls
Category: Alarm Controls Corporation, Access Control & Communications, Locking Devices, Exit Devices & Push Buttons
UPC Code: 604840224512
Country of origin: United States. Country of origin is subject to change.
