Additional Features:
- Volts: 0~500V
- Current: 0~0.6A / 0~2A
- Power: 100W
- LED Load Simulator for LED Driver Test
- Min. Operating Voltage: 6V at 2A
- Synchronization with multiple loads
- Flexible CC, CR, CP and CV operation modes
- Dynamic loading with speeds up to 20 kHz
- Fast response of 0.32mA/s - 10A/s slew rate
- Minimum input resistance allows the load to sink high current at low voltages
- Real time power supply load transient response simulation and output measurements
- User programmable 100 sequences. Front panel input status for user-friendly operation
- High/Low limits of testing parameters to test GO/NG
- Digital I/O control
- Over current protection (OCP) testing function
Applications:
- Constant Current Mode
- Constant Resistance Mode
- Constant Voltage Mode
- Constant Power Mode

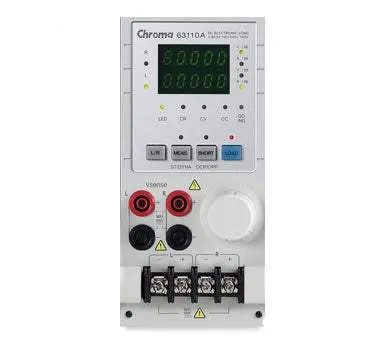

The Chroma 63110A Programmable DC Electronic Load is ideal for the test and evaluation of multi-output AC/DC power supplies, DC/DC converters, chargers and power electronic components. It is designed for applications in research and development, production, and incoming inspection. The system is configured by plugging the user selectable load modules into the system mainframe. The user interfaces include an ergonomically designed user friendly keypad on the front panel and the following computer interfaces: RS-232, USB or GPIB.
The Chroma 6310A Programmable Electronic Load integrates microprocessor capabilities into each load module and mainframe to provide simple and accurate parallel operation to optimize the speed and control among multiple load modules. All load modules may be configured to work synchronously, to test multiple outputs simultaneously, thus simulating real life applications.
